300/500V RVV 2x1.5mm² PVC Flexible Control Cable Stranded Copper

Cable Designation & Meaning

Construction: Light PVC sheathed flexible cord, flat/oval or round profile (2-core)

RVV 2×1.5 mm² — Cable Specification & Engineering Data

1. Product Overview & Rating Summary. RVV 2×1.5 is a robust two-core flexible PVC-insulated PVC-sheathed cord for heavier light-duty interconnection: two 1.5 mm² annealed copper Class 5 flexible conductors, each insulated in PVC and collectively enclosed in one PVC overjacket for 300/500 V, 50 Hz service. It is manufactured and type-tested to GB/T 5023.5 (60227 IEC 52) / IEC 60227-5, with flexible stranded conductors conforming to GB/T 3956. The finished outer diameter is about 8.4 mm and the nominal mass is roughly 100 kg per kilometre (≈ 10.0 kg per 100 m), supplied on 100 m reels or cartons.

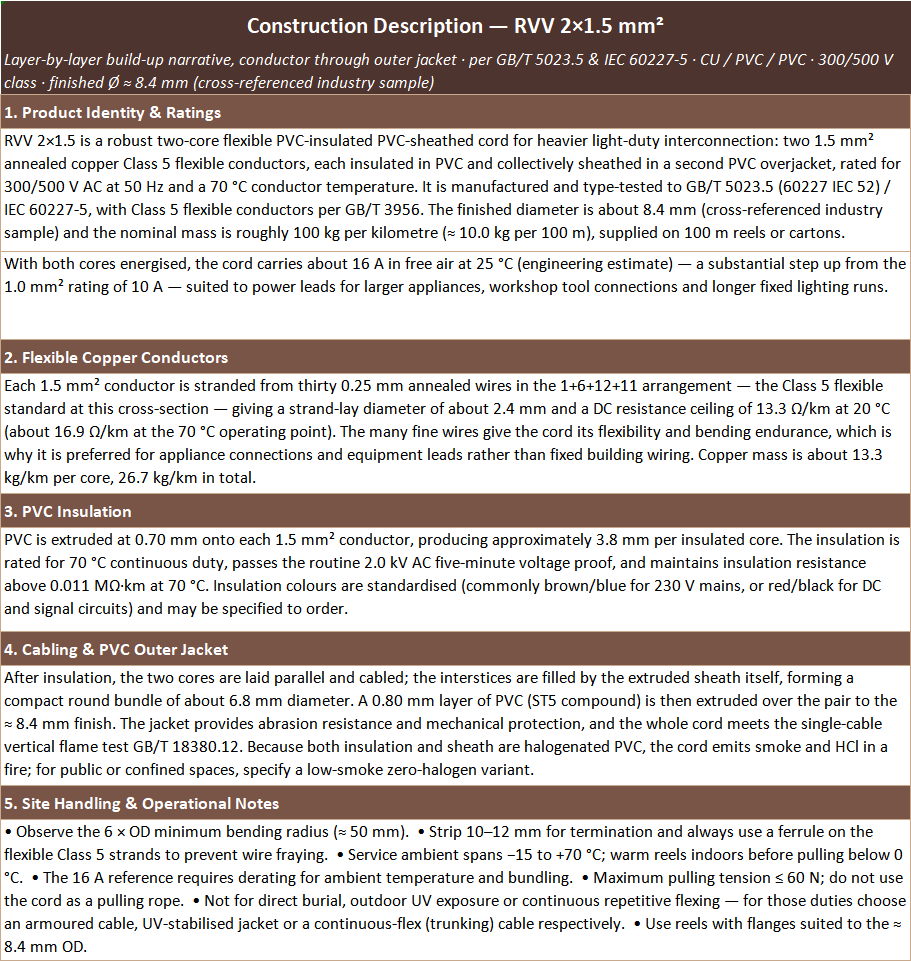

2. Layer-by-Layer Construction (Conductor to Jacket).

3. Electrical Characteristics. Each 1.5 mm² conductor is held to a maximum DC resistance of 13.3 Ω/km at 20 °C, rising to around 16.9 Ω/km at the 70 °C operating point. Every length survives the routine 2.0 kV AC power-frequency proof held for five minutes. Finished-cable insulation resistance remains above 0.011 MΩ·km at 70 °C, and typical figures include capacitance ≈ 120 nF/km and 50 Hz AC impedance ≈ 13.3 Ω/km (resistance-dominant). With both cores energised, reference loading is about 16 A in free air at 25 °C (engineering estimate), and the loop voltage drop at 16 A is about 0.43 V per metre.

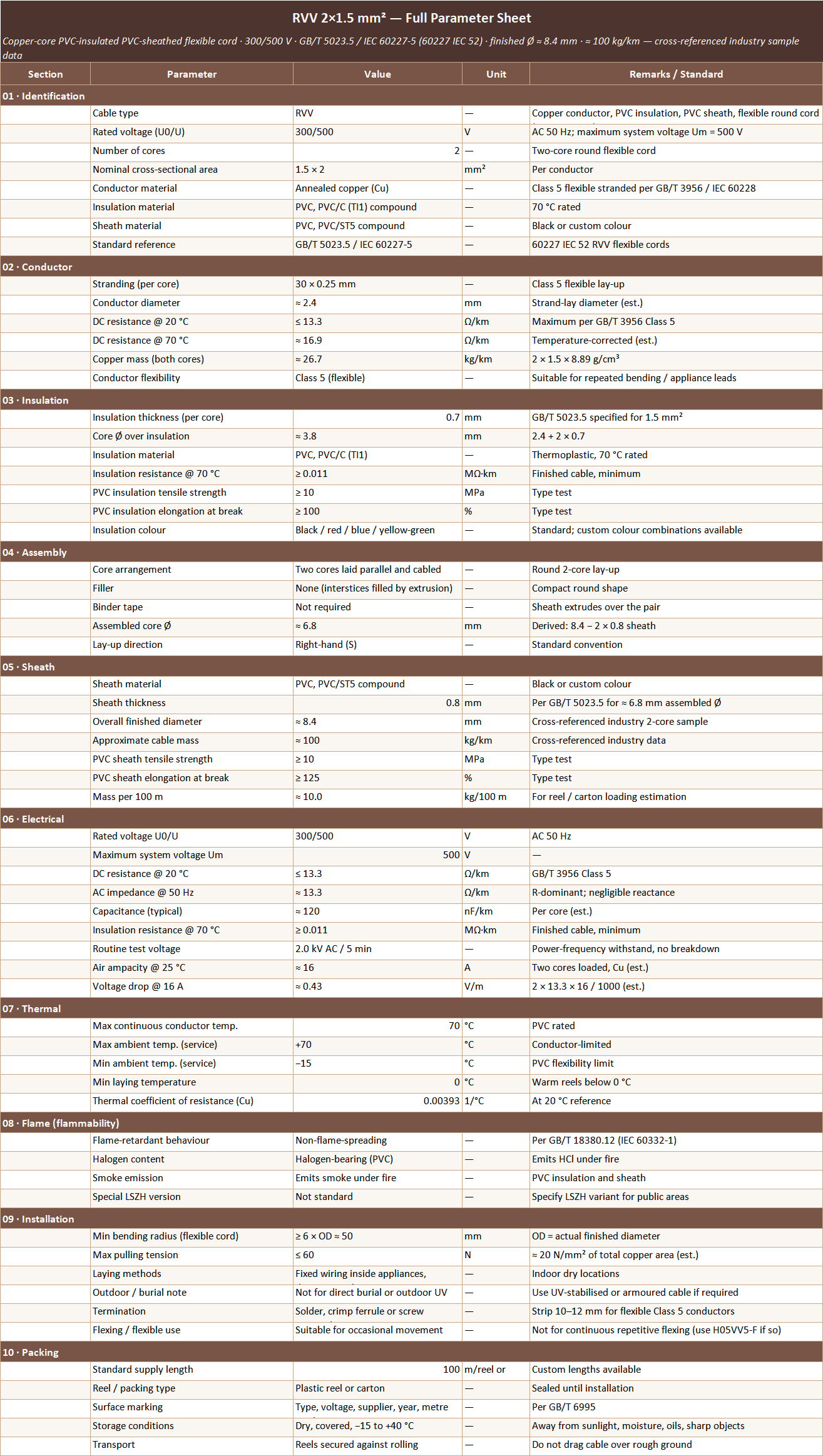

Electrical Parameters

4. Thermal Response & Flame Behaviour. PVC insulation sustains a 70 °C continuous conductor temperature. The cord is rated for service ambients between −15 and +70 °C, must not be uncoiled below 0 °C without pre-conditioning, and uses 25 °C as the reference ambient for ampacity. Flame behaviour meets the single-cable vertical test GB/T 18380.12 (IEC 60332-1), meaning the cord self-extinguishes when the flame source is removed. Because both insulation and sheath are halogenated PVC, the cord emits smoke and hydrogen chloride in a fire; low-smoke zero-halogen projects must specify an LSZH variant.

Cable Parameters

5. Installation Practice & Handling. Bends must not fall below 6 times the actual outer diameter — about 50 mm for this size. Termination requires stripping 10–12 mm and always using a ferrule on the flexible Class 5 strands to prevent wire fraying. Reels held below 0 °C in storage must be warmed indoors before uncoiling; pulling tension should stay within 60 N, and the cord must never be used as a pulling rope. The 16 A reference requires derating whenever ambient temperature or bundling deviates from reference conditions. This cord is not for direct burial, outdoor UV exposure or continuous repetitive flexing — for those duties choose an armoured cable, a UV-stabilised jacket or a continuous-flex (trunking) cable respectively.

Cable Cross Section Structure

Cable Construction Description

6. Typical Service Applications. This cord serves heavier light-duty power connections: mains leads for washing machines, air conditioners and other high-current household appliances, workshop hand-tool power leads, fixed lighting runs and lamp post internal wiring, instrument and control cabinet interconnection, office equipment and server rack power cords, and small machine-tool internal wiring. Approved installation methods include fixed wiring inside appliances, cable trunking and indoor ducting in dry locations, both indoors and in covered sheltered spaces.

7. Testing & Quality Assurance Regime. Routine tests on every length include conductor DC resistance verification (≤ 13.3 Ω/km at 20 °C), the 2.0 kV AC / 5 min withstand, conductor continuity across both cores, and dimensional inspection covering insulation ≥ 0.70 mm, sheath ≥ 0.80 mm and overall diameter ≈ 8.4 mm. Sample and type tests comprise PVC insulation and sheath tensile strength (≥ 10 MPa) with elongation (≥ 100 % insulation / ≥ 125 % sheath), PVC heat deformation at 80 °C, PVC shrinkage at 150 °C, the single-cable vertical flame test, bending and cold-bend tests at −15 °C, and the voltage test after flexing. A factory test certificate accompanies each reel.

Cable Test Parameters

8. Standards & Conformity. Design and production are governed by GB/T 5023.5 and IEC 60227-5 for 300/500 V flexible cords (60227 IEC 52). Conductors satisfy GB/T 3956 / IEC 60228 Class 5 — the 1.5 mm² conductor as thirty wires of 0.25 mm with R ≤ 13.3 Ω/km. Flame behaviour is proven by GB/T 18380.12. General test methods follow GB 5023.1 / GB 5023.3, while surface marking complies with GB/T 6995. Cables can also be supplied to IEC, BS, DIN, UL or VDE requirements on request. Because the PVC jacket contains halogen, tunnels, metro systems, hospitals and other confined public areas call for an LSZH variant.

9. Packaging, Storage & Logistics. Standard delivery is 100 m per reel or carton, with bespoke cut lengths available on request. Each reel carries type, voltage, supplier identity, production year and sequential metre marking per GB/T 6995. Storage should be in dry, covered premises at −15 to +40 °C, shielded from direct sunlight, moisture, oils and sharp objects; reels remain sealed until installation. In cold conditions, condition reels indoors to ≥ 0 °C before uncoiling. During transit, reels must be secured against rolling and impact, and the cord must never be dragged across abrasive ground or sharp edges.

10. Procurement Specification. State "RVV 300/500 V 2×1.5" together with the required length or reel arrangement, insulation colour combination and marking preferences. Specify the sheath colour (black is standard) and any special colour-coding (e.g. brown/blue for 230 V mains, red/black for DC). Always request the factory test certificate to confirm the actual diameter (≈ 8.4 mm), weight (≈ 100 kg/km) and conductor resistance for the production batch. Where low-smoke zero-halogen or continuous-flex construction is needed, order the LSZH or H05VV5-F variant respectively.

11. Cable Industry FAQ.

• Q1: How does 2×1.5 differ from 2×1.0? The conductor area grows from 1.0 to 1.5 mm² (stranding from 32×0.20 to 30×0.25 mm), lowering DC resistance from 19.5 to 13.3 Ω/km, raising the rated current from about 10 to 16 A, increasing the finished diameter from 6.7 to 8.4 mm, and lifting the weight from about 70 to 100 kg/km.
• Q2: Why a 1.5 mm² cross-section for appliance leads? For a 16 A load at 230 V, 1.5 mm² is the standard for high-current household appliances and fixed lighting under IEC 60227 and GB/T 5023. Heavier loads require 2.5 mm² conductors.
• Q3: What does Class 5 flexible conductor mean? Class 5 (GB/T 3956) is made of many thin wires (30 × 0.25 mm at 1.5 mm²), giving the cord its flexibility and bend endurance. Class 2 (used in power cables like YJV) uses fewer thicker wires and is much stiffer — never mix them up when ordering.
• Q4: Can RVV be used outdoors? Not in its standard form: the PVC jacket is not UV-stabilised and will degrade under prolonged sunlight. For outdoor use specify a UV-stabilised jacket or an armoured cable. For burial, use a steel-tape armoured power cable.
• Q5: How is the conductor cross-section chosen for an appliance lead? Selection follows (a) full-load current after derating, (b) permissible voltage drop (typically ≤ 5 % for appliance leads), and (c) coordination with the upstream fuse or circuit breaker. A 1.5 mm² cord supports up to about 16 A; higher loads require 2.5 mm² or larger.
• Q6: Copper or tinned copper conductor? Bare annealed copper (this RVV) is standard for fixed appliance leads and gives the lowest resistance. Tinned copper is preferred where the conductor may be exposed to moisture or where solder termination is used, because it resists oxidation.
• Q7: Why can PVC only run at 70 °C while XLPE runs at 90 °C? PVC is a thermoplastic that softens and deforms at elevated temperature; XLPE is cross-linked into a thermoset network that retains its shape up to 90 °C. This is why RVV (PVC) is limited to 70 °C and YJV (XLPE) to 90 °C.
• Q8: What is the difference between RVV and RVYP? RVV is the plain unshielded round flexible cord. RVYP adds an aluminium-foil braid screen for electromagnetic interference rejection — choose the shielded variant when the circuit carries low-level signals or is routed near noisy equipment.
• Q9: Why does finished diameter vary between manufacturers for the same nominal size? Standards set minimum insulation and sheath thicknesses plus electrical performance, but not a precise overall diameter. Stranding compaction, filler design and sheath tolerance differ between plants — published 2×1.5 figures cluster around 8.4 mm — so the actual measured diameter must be used when sizing glands and clips.
• Q10: Which tests confirm acceptability on delivery and before energisation? At delivery, verify the factory test certificate (resistance ≤ 13.3 Ω/km, 2.0 kV/5 min withstand, dimensions ≈ 8.4 mm), jacket legibility and reel integrity. After installation, complete an insulation-resistance test plus a 2.0 kV AC / 5 min withstand, then confirm both conductors identified correctly before energising.
• Q11: What service life can be expected? When installed and operated within the stated temperature and voltage limits, PVC flexible cords are designed for a service life of around 10–15 years in dry indoor conditions; sustained overload, repeated flexing beyond the 6 × OD minimum radius, ultraviolet exposure, or operation above 70 °C will materially shorten that life.
